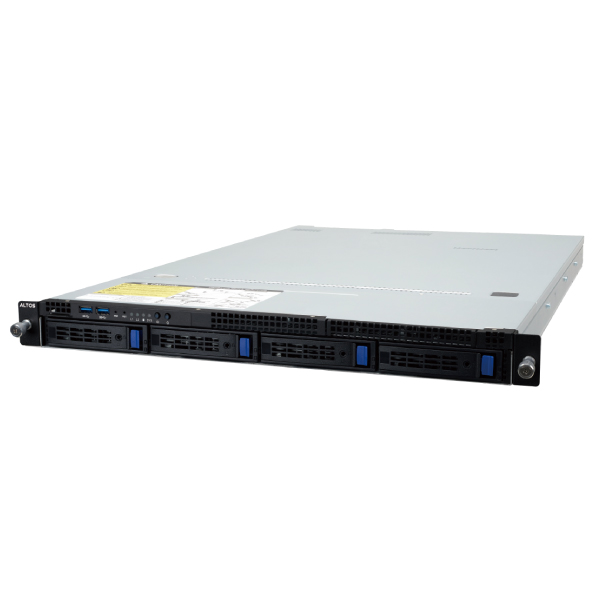

Management Server Model MS-R369
Order Information
Level︱Mgmt
Form Factor︱1U/19″ Rack
Views︱*Mgmt
CPU︱XEON Gen2 4210 x 1
Memory︱1 x 16GB RDIMM ECC
Graphic︱Built in BMC DP
OS Drive︱M.2 NVMe 2TB
HDDs︱Optional(*4×3.5″)
SAS/SATA HBA︱Optional
NIC ports︱1GbE x 2
OS︱Optional(W10,WS2020,…)
Warranty︱3 years
Optionals︱OS, RAID Card
Processors︱Up to 2 x 2nd Gen Intel® Xeon® Scalable Processors
Memory︱Up to 2TB ECC DDR4 2933 RDIMM/LRDIMM
Graphics︱ASPEED AST2500 BMC supported
Storage︱Up to 72TB Supported
Drives︱SSD, SATA and SAS
RAID︱OS RAID 0,1,5,10 ; Optional Hardware RAID : 0,1,5,6,10
Slots︱
2 x PCIe x8 slot (Gen3 x8), Low profile half-length
1 x PCIe x16 slots (Gen3 x16), Low profile half-length
2 x OCP mezzanine slots (PCIe Gen3 x 16, type P1, P2, P3, P4, K2, K3)
NIC︱Dual 1GbE LAN ports with Intel® I350-AM2
Software︱
AI Developmant API & Platform
Accelera Recording/AI Accelerator AmpIO™
IPMI Server Mnangement & Smart Server Manager
Smart Console remote manager
TPM Header(System Security); Optional:TPM 2.0module(LPC Interface)
Form Factor︱1U Rack Mount
Rack Support︱Optional Sliding Rail
Drive Bays︱
4 x 3.5”/2.5” bay SAS/SATA hot-swappable HDD/SSD + 1 x 2.5” Internal Fixed bay SATA HDD/SSD
10 x 2.5″ SATA or 8 x 2.5” SAS + 2 x 2.5” bay SATA HDD/SSD
Power Supply︱550/800/1200W 80 PLUS Titanium;(1+1 redundant power supply optinal)
Tested OS supported︱
Window Server 2019, 2016
Red Hat® Enterprise Linux® 7.4 and 8.0
Ubuntu 18.04 and 20.04
VMware ESXI 6.7 and 7.0 U2
EMC / Safety︱
CE, FCC, BSMI
CB, MET, BSMI
