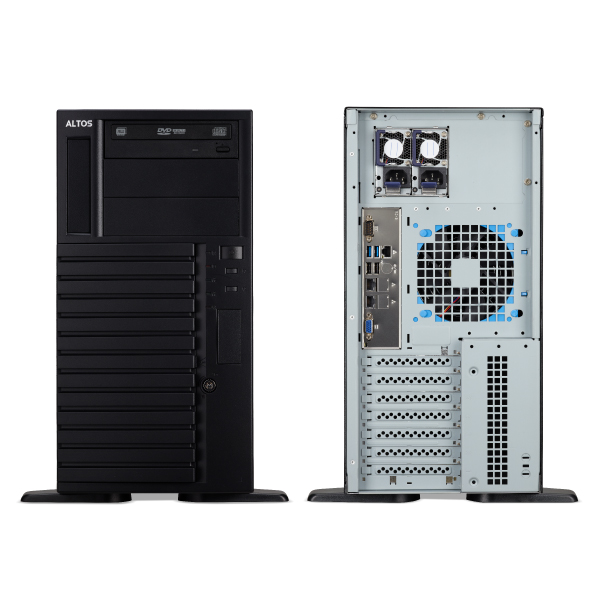

Medium Model AM-T350
up to 128 IP cams(640Mbps) supported
Order Information
Level︱Medium
Form Factor︱WS
Cameras︱100
CPU︱XEON Gen2 4210 x 1
Memory︱(16GBx2)32GB RDIMM ECC
Graphic︱nVidia GT720
OS Drive︱M.2 NVMe 1TB
HDDs︱Optional(*8×3.5″)
SAS/SATA HBA︱Optional
NIC ports︱2x1GbE RJ45 ports
OS︱Optional(W10,WS2019,…)
Warranty︱3 years
Optionals ︱OS, RAID Card
Processors︱2 x 2nd Generation Intel® Xeon® Scalable Processors supported
Memory︱Up to 2TB DDR4 DIMM
Graphics︱on board ASPEED AST2500 BMC Graphics port and nVidia GT720
Optional 1 GPU card Support
Storage︱Up to 144TB Supported
Drives︱SSD, SATA and SAS
RAID︱OS RAID 0,1,5,10 ; Optional Hardware RAID : 0,1,5,6,10
Optional : JBOD supported
Slots︱
4 PCI-E 3.0 x 16
2 PCI-E 3.0 x 8
1 M.2 2260/2280/22110 slot (M-key, w/PCIe 3.0 x4)
NIC︱Dual 1GbE LAN with Intel® X722
Software︱
Altos BrainSphereTM AI Development Platform API
Accelera Recording/AI Accelerator AmpIO™
IPMI Server Management & Smart Server Manager
Smart Console remote manager
System Security TPM Header
Form Factor︱Tower or Rack mount (via rack mount kit)
Rack Support︱Optional Sliding Rail
Drive Bays︱
8 x 3.5”/2.5” hot-swappable bays for HDD/SSD
3 x 5.25” media bays
Power Supply︱550/800/1200W 80 PLUS Platinum(1+1 redundant power supply optinal)
Tested OS supported︱
Window Server 2019, 2016
Red Hat® Enterprise Linux® 7.3
EMC / Safety︱
CE, FCC, BSMI
CB, MET, BSMI

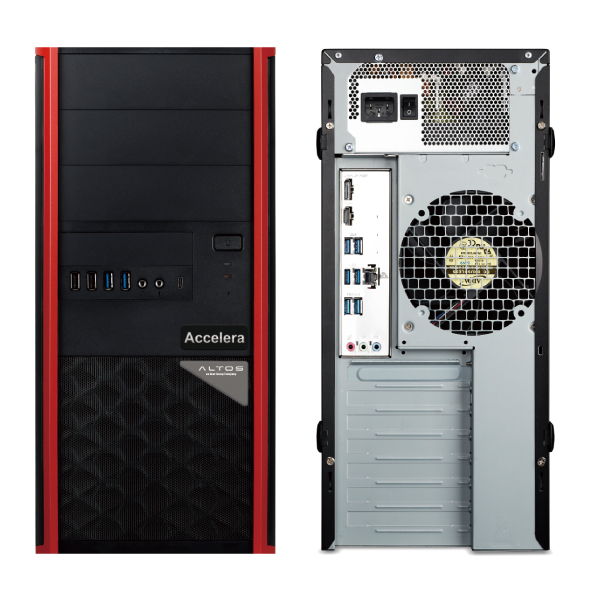

Entry Model AE-P130
Up to 64 IP-cams(320Mbps) Supported
Order Information
Level︱Entry
Form Factor︱WS
Cameras︱64
CPU︱i5-11400
Memory︱16GB(2x8GB) UDIMM
Graphic︱Built in Intel GPU
OS Drive︱M.2 NVMe 512B
HDDs︱Optional(*4×3.5″)
SAS/SATA HBA︱Optional
NIC ports︱1GbE x 1
OS︱Optional(W10,WS2019,…)
Warranty︱3 years
Optionals︱OS
Processors︱1 x i5-11400 ; Xeon W-1300/W-1200 series or 11th/10th Core™ series Supported
Memory︱Up to 128GB DDR4 3200 DIMM(ECC or Non ECC UDIMM)
Graphics︱on board Intel® UHD Graphics Support
Storage︱72TB Maximum supported
Drives︱SATA
RAID︱On board embedded Intel RAID 0,1,5,10 , RST or VROC
Slots︱
1 PCI-E 4.0 x16 slot (Core 11th/W-1300 CPU only; Core 10th CPU with PCI-E 3.0)
1 PCI-E 3.0 x4 slot
1 PCI-E 3.0 x1 slot
NIC︱1 x 1GbE ports; Optional : 1GbE or 10GbE ports additional card
Software︱
Accelera Recording/AI Accelerator AmpIO™
Optional : Smart Server Mnangemen SW & TPMv2.0 module
Form Factor︱Tower
Drive Bays︱
Media : 3 x 5.25″ bay, 1 x 3.5” bay
Storage : 4 x 3.5″ bays
Power Supply︱750W 80 PLUS Gold
Tested OS supported︱
Microsoft® Windows® 10 64-bit / 11 64-bit
Red Hat Enterprise Linux 8.4 (Core 11th/W-1300 CPU only)
Ubuntu Linux 20.04
EMC / Safety︱
CE, FCC, BSMI(Class B)
CB, MET

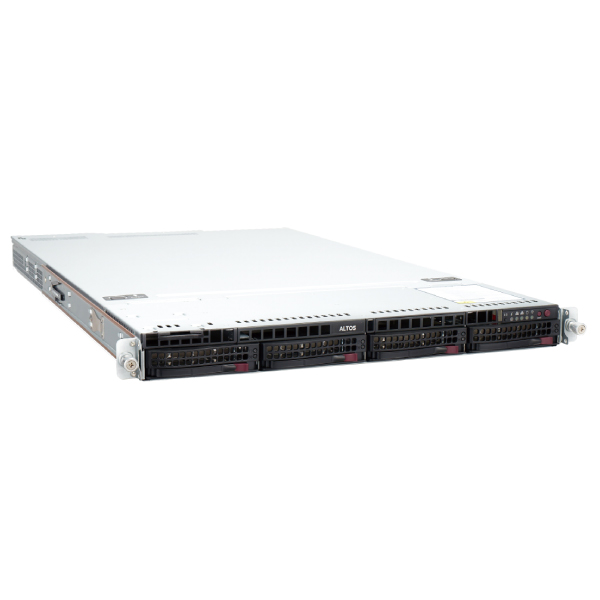

Extend Model AE-R360
up to 100 IP Cam supported
Order Information
Level︱Extend
Form Factor︱1U/19″ Rack
Cameras︱64
CPU︱XEON Gen3 4310 x 1
Memory︱(32GB) 2 x 16GB RDIMM ECC
Graphic︱nVidia GT720
OS Drive︱U.2 NVMe 1.92TB
HDDs︱Optional(*4×3.5″)
SAS/SATA HBA︱Optional
NIC ports︱10GbE x 2
OS︱Optional(W10,WS2019,…)
Warranty︱3 years
Optionals︱OS, RAID Card
Processors︱Up to 2 x 3rd Gen Intel® Xeon® Scalable Processors
Memory︱Up to 2TB ECC DDR4 3200/2933/2666 RDIMM/LRDIMM
Graphics︱nVidia GPU card supported
Storage︱Up to 72TB Supported
Drives︱SSD, SATA and SAS
RAID︱OS RAID 0,1,5,10 ; Optional Hardware RAID : 0,1,5,6,10
Optional : JBOD supported
Slots︱
2 x PCIe x16 slots(Gen4x16)Full/Half Height
1 x PCIe x16 slots(Gen4x16)Low profile Half Height
1 x PCIe x16 slot (Gen4 x16) internal Slots (need select network option module)
NIC︱Dual 10GbE (Dual 10GbE SFP+ or Dual 10GBaseT)
Software︱
AI Development API & Platform
Accelera Recording/AI Accelerator AmpIO™
IPMI Server Management & Smart Server Manager
Smart Console remote manager
TPM Header(System Security); Optional : TPM 2.0module(LPC Interface)
Form Factor︱1U Rack Mount
Rack Support︱Optional Sliding Rail
Drive Bays︱
4 x 3.5” NVMe/SAS/SATA(SAS/NVMe support requires additional parts)
hot-swappable bays for HDD/SSD
Power Supply︱1200W 80 PLUS Titanium;(1+1 redundant power supply optional)
Tested OS supported︱
Windows Server 2019 or 2022
Red Hat® Enterprise Linux® 7.9,8.2 and 9.0
Ubuntu 18.04 and 20.04
VMware ESXI 6.7 and 7.0
EMC / Safety︱
CE, FCC, BSMI
CB

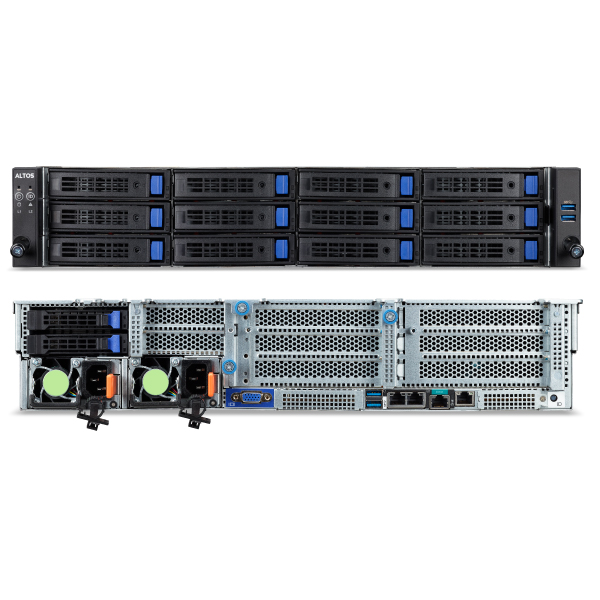

Power Model AP-R389
up to 200 IP cams(1000Mbps) supported
Order Information
Level︱Power
Form Factor︱2U/19″ Rack
Cameras︱128
CPU︱XEON Gen2 4210 x 1
Memory︱(16GBx2)32GB RDIMM ECC
Graphic︱nVidia GT720
OS Drive︱M.2 NVMe 2TB
HDDs︱Optional(*12x 3.5″)
SAS/SATA HBA︱Optional
NIC ports︱1GbE x 2
OS︱Optional(W10,WS2019,…)
Warranty︱3 years
Optionals︱OS, RAID Card
Processors︱2 x 2nd Generation Intel® Xeon® Scalable Processors supported
Memory︱Up to 1.5TB DDR4 (2933) DIMM(RDIMM/LRDIMM
Graphics︱on board ASPEED AST2500 BMC Graphics port and nVidia GT720
Optional 2 GPU card Support(Additional)
Storage︱Up to 216TB Supported
Drives︱SSD, SATA and SAS
RAID︱OS RAID 0,1,5,10 ; Optional Hardware RAID : 0,1,5,6,10
Optional : JBOD supported
Slots︱
2 x PCIe x16 slots (Gen3 x16 or x8), Full height half-length
2 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
2 x PCIe x8 slots (Gen3 x8), Full height half-length
1 x PCIe x8 slot (Gen3 x0 or x8), Low height half-length
1 x PCIe x16 slot (Gen3 x16 or x8), Low height half-length
2 x OCP mezzanine slots2 (PCIe Gen3 x 16, type P1, P2, P3, P4, K2, K3)
NIC︱2 x 1GbE ports; Optional : 10GbE ports
Software︱
AI Development API & Platform
Accelera Recording/AI Accelerator AmpIO™
IPMI Server Management & Smart Server Manager
Smart Console remote manager
TPM Header(System Security); Optional:TPM 2.0module(LPC Interface)
Form Factor︱2U 19″ Rack mount Server
Rack Support︱Sliding Rail
Drive Bays︱
Front : 12 x 3.5”/2.5” SAS/SATA hot-swappable bays for HDD/SSD
Rear : 2 x 2.5″ SATA/SAS swappable HDD/SSD bays
Power Supply︱550/800/1200W 80 PLUS Platinum;(1+1 redundant power supply optional)
Tested OS supported︱
Window Server 2019, 2016
Red Hat® Enterprise Linux® 7.4 and 8.0
Ubuntu 18.04 and 20.04
VMware ESXI 7.0 U2
EMC / Safety︱
CE, FCC, BSMI
CB, MET, BSMI
